ezeio mkII Hardware

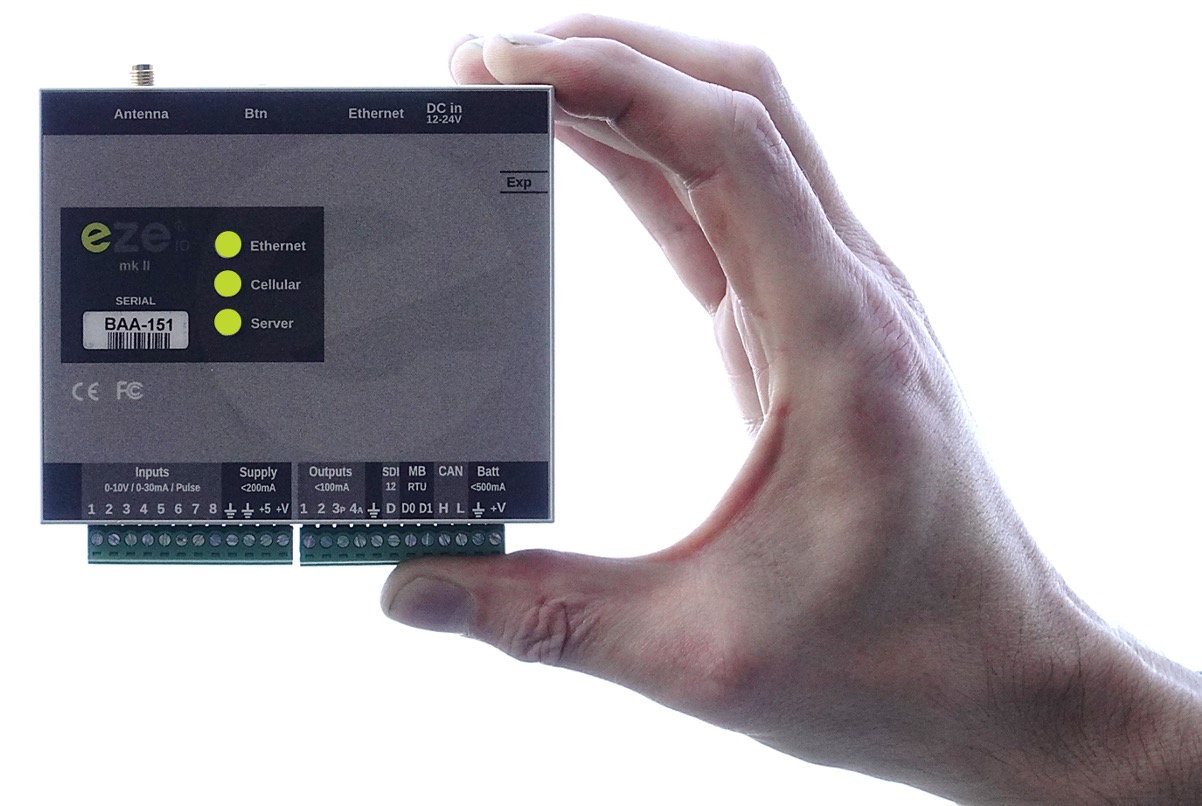

The ezeio® mkII Hardware

Combining all hardware & firmware components needed for making IIoT work. 100% remotely managed, configured & synchronized.
  • Input/Output Unit
  • Data Logger
  • Modem (LTE Cat M1) & Gateway
  • PLC (edge processing)
  • System Functionality

See also the ezeio mkII documentation, leaflet and capability overview.


Specification

Hardware models
  • LTE-CAT-M1 (5G IoT) + Ethernet (EM2020)
  • 2G/3G + Ethernet (EM2010) - please check availability
Security
  • Secure OTA sync & updates
  • Fully encrypted, PKI & 128bit encryption,
Inputs/outputs
  • 8 general purpose inputs (discrete, on pluggable terminal, fully configurable)
    • 0-10VDC (2.5mV resolution, >65kΩ input impedance)
    • 0-30mA (12.5uA resolution, 200Ω internal shunt)
    • 0-1MΩ resistance (<2% accuracy in the range 2k – 700kΩ)
    • Thermistor (100kΩ/10kΩ/2kΩ types, internal excitation)
    • Dry switch (on/off, optional internal excitation)
    • Pulse (S0 or KYZ, max. 400Hz, optional internal excitation, monitor pulse rate and/or pulse count/ frequency/interval)
    • Electronic configuration of pull-up / shunt
    • Protected with PTC
    • Internal 0.5% reference
  • 4 general purpose outputs (discrete, on pluggable terminal, fully configurable)
    • Output 1/2 - digital (on/off), sourcing max. 200mA each
    • Output 3 - PWM output or on/off output (sourcing max. 200mA)
    • Output 4 - analog, 0-10V, 0.1V resolution (sourcing up to 10mA)
    • Supports plug-in sidecar ezeio I/O expansion (third-party I/O can be added via the communication ports)
Supports up to 90 individual fields
Modbus/RTU Master port (RS485)
  • Up to 32 devices
  • 1200 to 115200 bps
Modbus/TCP server & client (TP 10/100 Ethernet)
  • Configurable port numbers (standard 502)
CANbus
  • Supports J1939
  • Optionally used for I/O expansion
SDI-12 port
  • Supports v1.4
  • Optional support for serial NMEA 0183 (GPS)
Other hardware features
  • SMA antenna connector (cellular)
  • +5V DC regulated output, max. 200mA
  • PTC fused DC output, max. 200mA for sensors
  • On-board RTC (24h supercap backup)
  • 3 dual-color indicator LEDs
  • Pushbutton for controlled start-up/reset
Power supply
  • 12-24V DC
  • Standard 5.5/2.1mm plug in barrel connector
  • Optionally powered through screw terminal
  • 0.8W self-draw (average), 3W peak (short sub-second bursts)
  • Hibernation mode, <0.06W (average)
Dimension & weight
  • W: 108mm/4.3in, H: 90mm/3.6in (excl. connectors), D: 33mm/1.3in
  • Allow 50mm top & bottom for connectors & wiring
  • 35mm DIN rail or screw mounted
  • Weight: 0.150kg/5.3oz
On-board log buffer memory (non-volatile)
  • Full system log data (>50 days @ 10 minutes logging)
  • Large dynamic log data buffer, i.e.
  • 10 fields, >30 days @ 10 seconds
  • 50 fields, >30 days @ 1 minute
  • >6,000 events/alarms/transactions
  • All logs auto-uploaded to eze.io backend
Capabilities
  • Up to 90 monitored fields
  • Up to 300 alarms for local events, SMS, email, voice calls etc.
  • Geo-fence features with GPS support
  • Up to 2000 card/PIN codes
Schedules & Calendar
  • 10-year calendar
  • 30 daily schedules
Additional features
  • Full remote configuration & management
  • Live data access
  • Automatic data synchronization with eze.io cloud
  • Expression engine for field math & alarms
  • Remote firmware upgrade
  • Standard & custom driver support for industrial devices
  • Powerful scripting support
Others
  • Operating Temperature
    • -20 to 65°C
  • Operating Humidity
    • 5 to 95% (non-condensing)
  • IP rating
    • IP40 (use indoors/in electrical enclosure)
  • Max. number of devices per ezeio Hardware:
    • 40 drivers
    • 31 devices on a RS485 bus
    • 252 devices on a network subnet
Certifications
  • FCC Part 15 B 15.017 & 15.109
  • AS/NZS CISPR 32 (2015)
  • EN 55032 (2012) +AC1
  • EN 61000-3-2 (2014)
  • EN 61000-3-3 (2013)
  • EN 55024 (2019) +A1
  • VCCI-CISPR 32:2016 Class B
  • Verizon OD
  • CE
  • RoHS 3

Download the ezeio® mkII flyer
